1PH 50HZ Multiple Station Keyboard Key Life Tester

    Buy cheap 1PH 50HZ Multiple Station Keyboard Key Life Tester from wholesalers

    Buy cheap 1PH 50HZ Multiple Station Keyboard Key Life Tester from wholesalers
    • Buy cheap 1PH 50HZ Multiple Station Keyboard Key Life Tester from wholesalers

    1PH 50HZ Multiple Station Keyboard Key Life Tester

    Ask Lasest Price
    Brand Name : Gaoxin
    Model Number : GX-5611-212
    Certification : ISO
    Price : negotiation
    Payment Terms : FOB Shenzhen, L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    1PH 50HZ Multiple Station Keyboard Key Life Tester

    Multiple test stations Keyboard key life testing machine


    The machine can test the durability of keys and other buttons and switches of notebook computers, mobile phones and palm computers.


    1. Product Name: Keyboard key life testing machine


    2. Product Model: GX-5611-212


    3.Conform to the standard: YD/T 1539-2006


    4. Technical Parameter:

    Action stroke:10mm (fixed)
    Workpiece height adjustment range:100mm
    Clamping capacity of the fixture:400×300mm
    Probe installation:350×250mm
    Number of tests:999999×10
    Test speed:60-300rpm
    Load range:50-450g
    robe height adjustment:15mm
    Number of probe heads:15 standard (can be extended to 120 with additional cost)
    Minimum interval between two probes:10mm in the X direction and 20mm in the Y direction
    Appearance size:520×420×980mm
    Weight:110kg
    Voltage:1∮, 220VAC±10%, 50Hz,

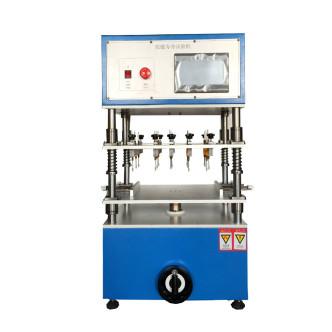

    5. Picture

    1PH 50HZ Multiple Station Keyboard Key Life Tester
