    YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ

    Ask Lasest Price
    Brand Name : Gaoxin
    Model Number : GX-5611-212
    Certification : ISO
    Price : negotiation
    Payment Terms : FOB Shenzhen, L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ

    Testing Machine 1PH 50HZ Multiple Station Keyboard Key Life Tester


    The machine can test the durability of keys and other buttons and switches of notebook computers, mobile phones and palm computers.


    1. Product Name: Keyboard key life testing machine


    2. Product Model: GX-5611-212


    3.Conform to the standard: YD/T 1539-2006


    4. Technical Parameter:

    Action stroke:10mm (fixed)
    Workpiece height adjustment range:100mm
    Clamping capacity of the fixture:400×300mm
    Probe installation:350×250mm
    Number of tests:999999×10
    Test speed:60-300rpm
    Load range:50-450g
    robe height adjustment:15mm
    Number of probe heads:15 standard (can be extended to 120 with additional cost)
    Minimum interval between two probes:10mm in the X direction and 20mm in the Y direction
    Appearance size:520×420×980mm
    Weight:110kg
    Voltage:1∮, 220VAC±10%, 50Hz,

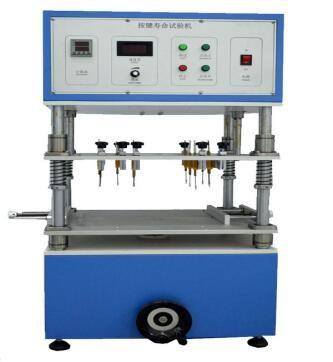

    5. Picture

    YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ


    1.How can we guarantee quality?
    Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

    2.What can you buy from us?
    Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.

    3.What details are required for a quotation?
    What is the test standard
    What product or material testing from this machine
    What is the Test object size
    What is you want the machine appropriate size

    4.Can I make changes before I ship?
    No,it can not change if machine finished

    5.When will my order ship?
    Need 10-45 workdays base on which type the the machine

    6.How can I track my order?
    We will send the schedule by each stage
