0.66KW Servo Control UTM Machine For Tensile Testing

Ask Lasest Price
Brand Name :	GAOIXN
Model Number :	GX-8002-C
Certification :	ISO 9001:2008; QS-9000; CE
Price :	negotiation
Payment Terms :	FOB Shenzhen, L/C, T/T, Western Union,
Supply Ability :	50 sets per month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

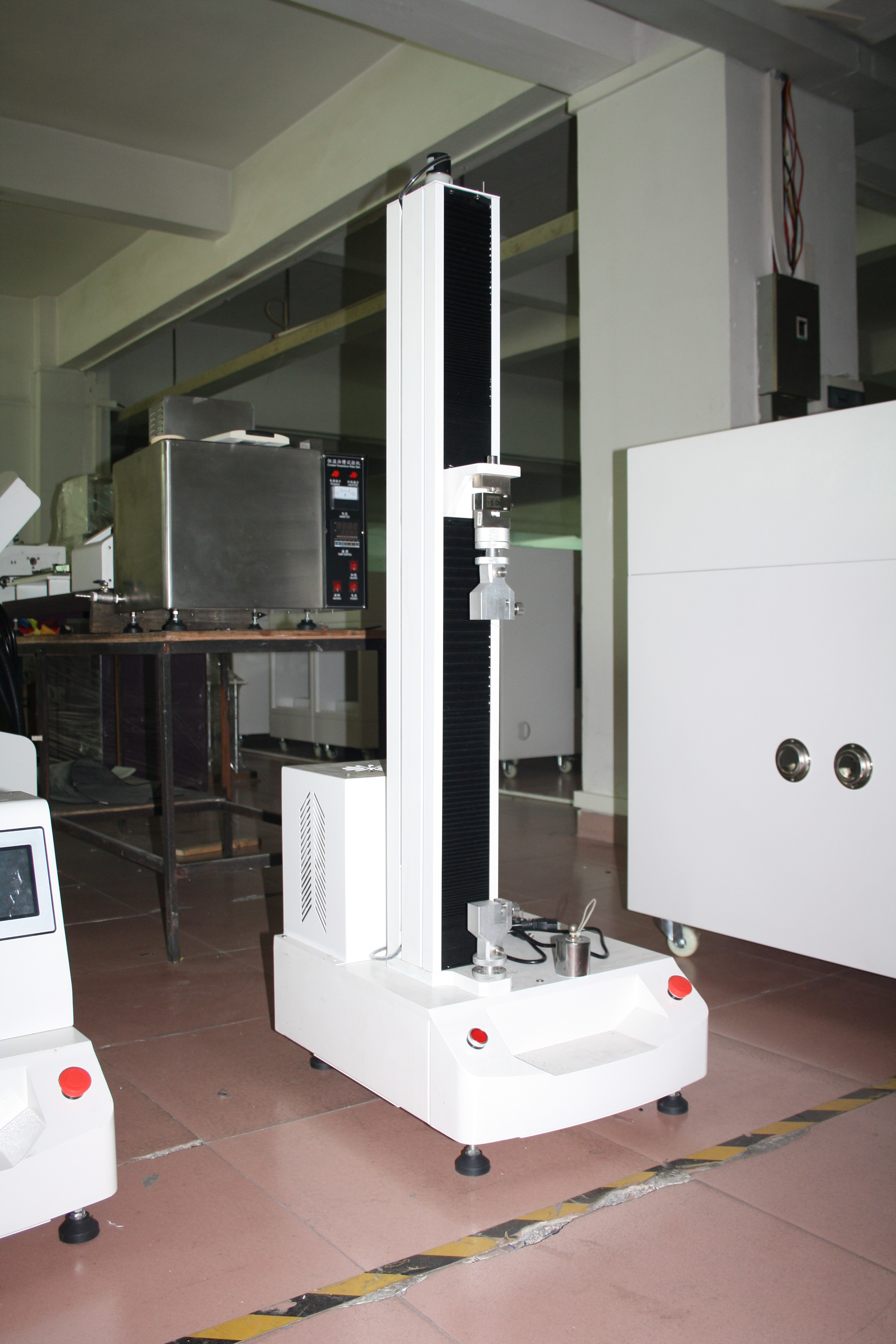

0.66KW Servo Control UTM Machine For Tensile Testing

Top Sell Machine Of The Servo Control Universal Testing Machine Tensile Test Equipment
Specifications:

Model	GX-8002-C
Maximum load	500, 1000, 2000, 5000 kg (optional)
Accurate	1 grade
Measuring accuracy	The value ±1% / the value±0.5%
Tester resolution	Max load 1/100000, constant the resolution
Effective testing width	400mm (or can be widened as customers requirement )
Effective tensile space	650,800,1000mm (or can be increased the height according to customers requirement)
Testing speed	From 0.5 to 1000mm/min
Unit	kgf, gf, lbf, N, kN, Mpa, pa(optional)
Accruacy of displacement measurement	Tolerance: ±0.5%
Accuracy of measured deformation	Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)
Safety	Electronic-limit protection
Testing plat form moving device	Fast /slow( two speeds to control) ,can jog
Return Back	Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection
Fixture	One set of tensile clamp
Volume	80010002500mm (LWH)
Motor	servo motor and drive
Power	220V,50HZ or as the requirement
Wattage	0.66kW (different demand of force with different motor)
Weight	300 Kg(approx)
