    200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment

    Ask Lasest Price
    Brand Name : Gaoxin
    Model Number : GX-8002
    Certification : ISO 9001:2008
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 30 sets per monh
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment

    200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment


    1. Rubber Material Tensile Testing Equipment Introduction


    Rubber tensile testing machine also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of rubber materials. The results of the tester are commonly used to select a material for an application, for quality control, and to predict how a material will react under other types of forces.

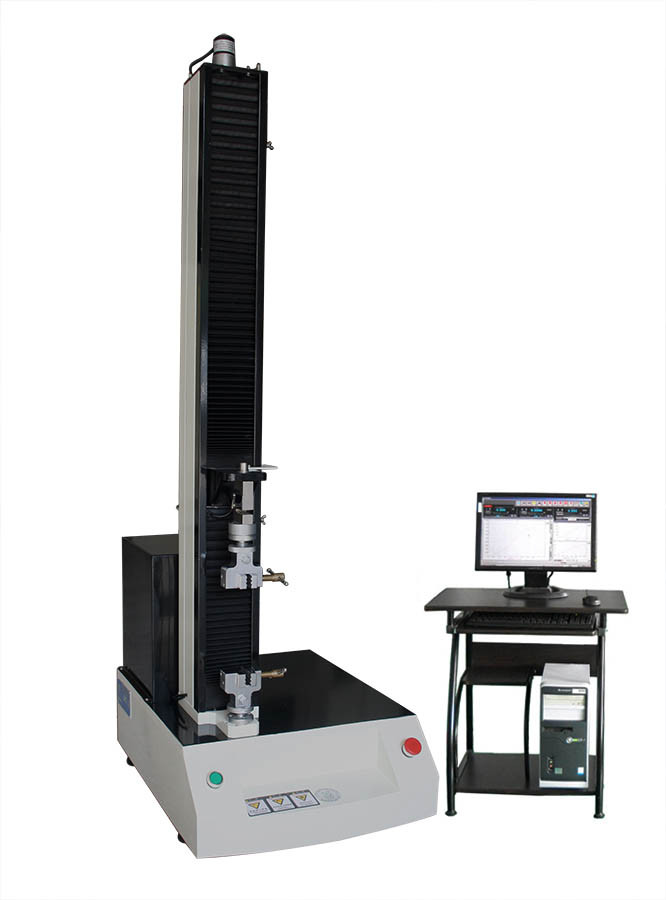

    2. Rubber Material Tensile Testing Equipment Picture


    200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment


    3. Rubber Material Tensile Testing Equipment Technical Parameter


    Model

    GX-8002

    Max load

    2kN (option, can customize)

    Accurate grade

    1 grade

    Effective measuring range

    0.2%~100%(1grade)

    Measuring accuracy

    the value ±1%

    Tester resolution

    Max load 1/100,000, constant the resolution

    Load sensor

    Basic configuration, sensor(max load), one

    Extended configuration, can add more sensors

    Effective working space

    600mm(can be increased the height according to customers requirement)

    Range of testing speed

    0.5~500mm/min

    safety

    Electronic-limit protection

    Testing platform moving device

    Fast /slow two speeds to control, can jog

    Return back

    Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

    Overload protection

    Overload 10%,automatic protection

    fixture

    A set of fixture

    Machine size

    400×500×1300mmm (length*width*height)

    Power system

    Panasonic AC Servo Motor + Driver

    Power supply

    220V,50HZ or specified by user

    Power

    0.66kW(depending on different demand of force, using different motor)

    Net weight

    (appr)80 kg
